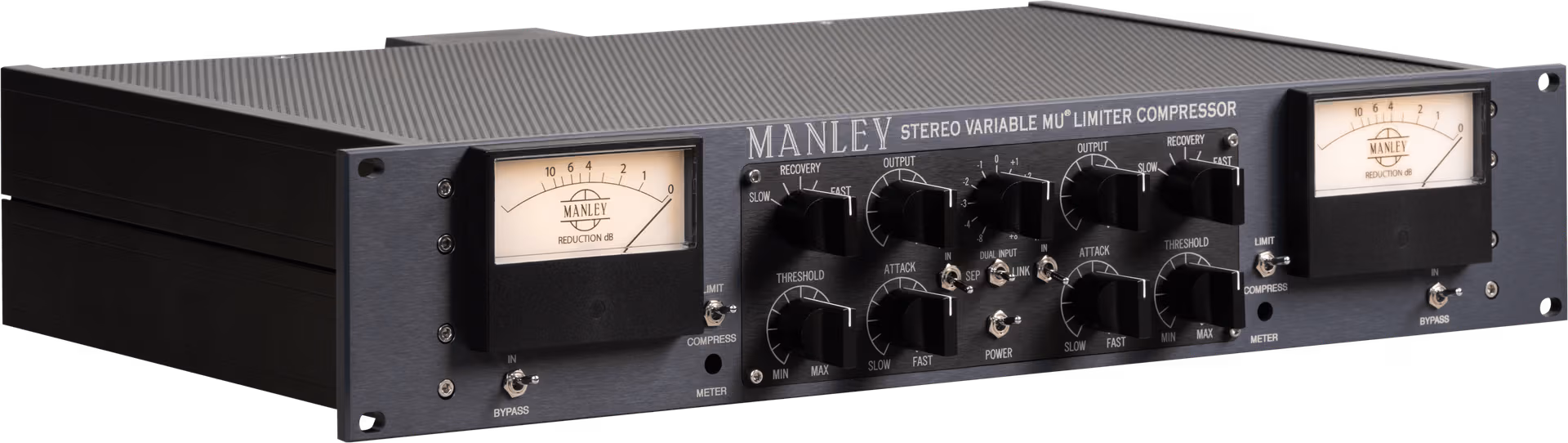

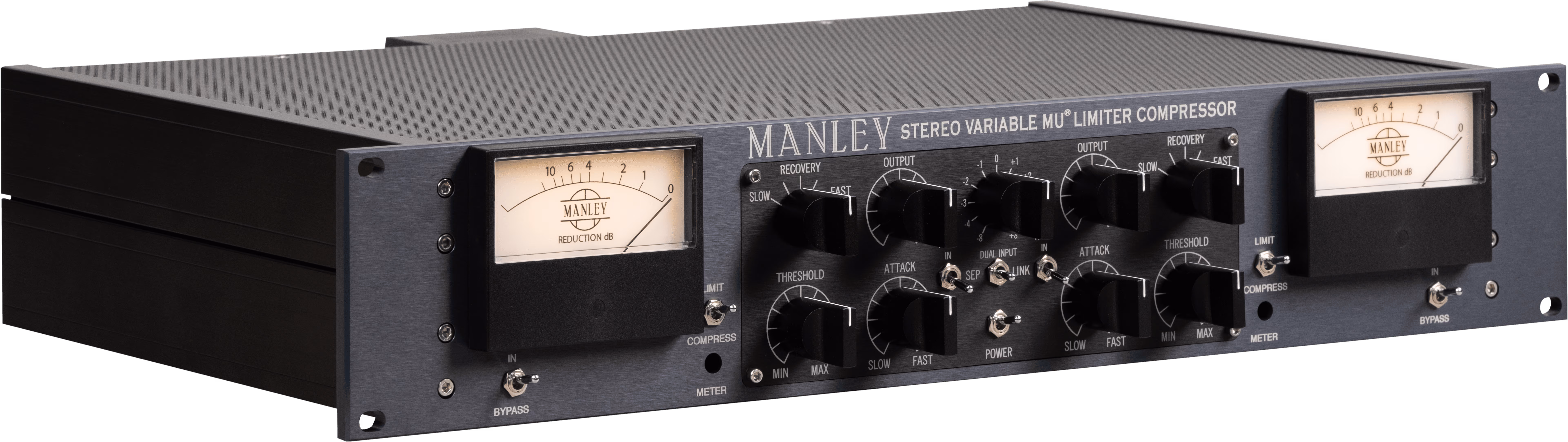

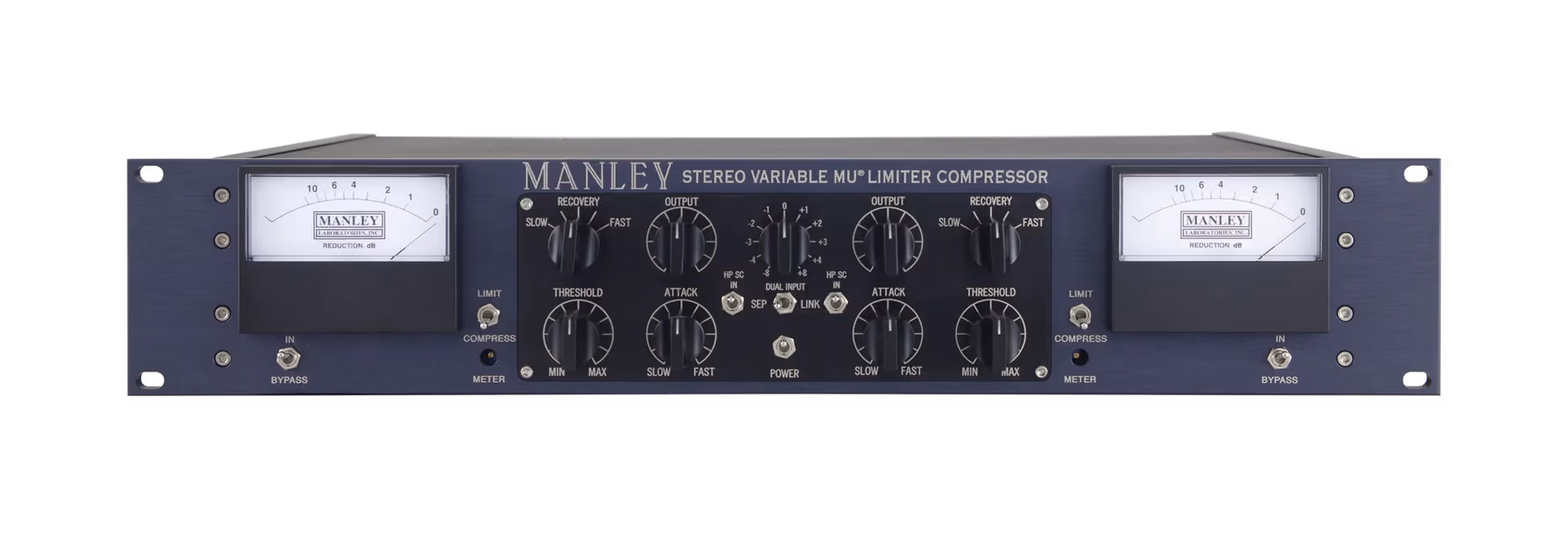

The Manley Mastering Variable Mu is a specialized version of the classic Variable Mu, tailored specifically for mastering applications. The most significant difference is the use of detented, stepped rotary switches for all controls (Input, Threshold, Attack, and Output), which replace the continuous potentiometers on the standard version. This allows for perfect, repeatable settings and effortless session recall. The Mastering version also features an expanded set of ratios, a stereo-only link switch, and a dedicated High Pass Side Chain (HP SC) filter, making it a more precise and powerful tool for critical mastering work.

Detented (or stepped) controls are crucial for mastering equipment. They ensure that every setting is perfectly repeatable and can be precisely recalled for future sessions or client revisions. Each "click" on the switch corresponds to a specific, measured value, eliminating the guesswork and potential for drift that can occur with continuous potentiometers. This level of precision is essential for maintaining consistency and accuracy in a professional mastering workflow.

The Mastering Variable Mu offers two distinct operating modes. In Compress mode, the unit has a gentle, soft-knee ratio of 1.5:1. This mode is ideal for adding subtle density, warmth, and cohesion to a mix without affecting dynamics too heavily. In Limit mode, the unit employs a sharper knee and a ratio that can increase to 20:1. This more aggressive mode is perfect for catching and controlling fast, transient peaks, making it an excellent tool for achieving modern loudness.

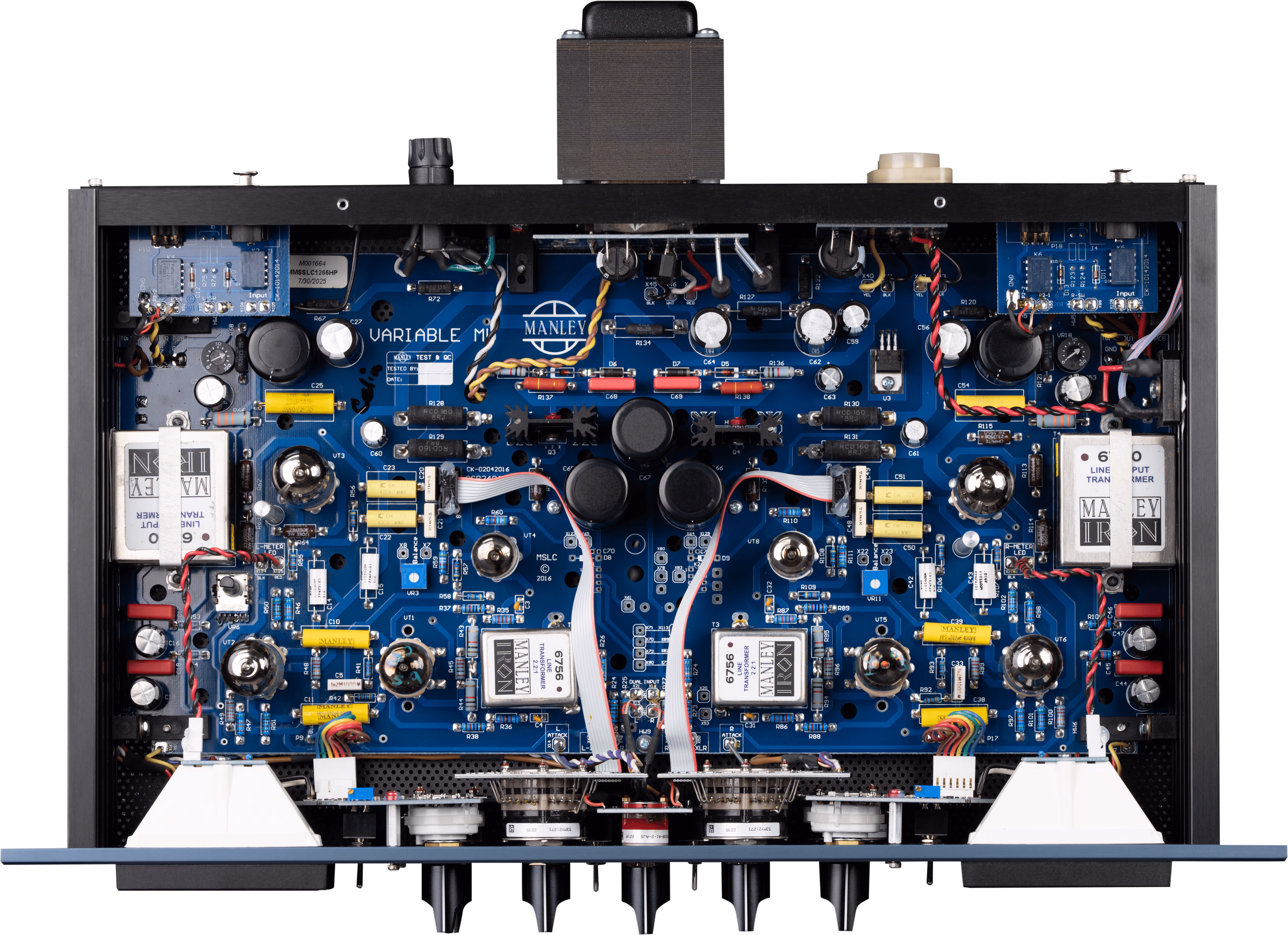

The Mastering Variable Mu utilizes a specific selection of vacuum tubes to achieve its sonic signature. The variable gain stage uses a 5670 dual triode tube. The amplifier stage uses a 5751, and the output stage uses a 12BH7, 7044, or 5687, depending on the unit's age. This all-tube signal path, combined with Manley's custom-wound transformers, is the heart of its classic analog sound.

The High Pass Side Chain (HP SC) filter is a crucial feature that prevents the compressor from "pumping" or over-reacting to bass frequencies. When engaged, the filter tells the compressor's detector circuit to ignore sounds below 100Hz. This means that a kick drum or a heavy bass line will not trigger the gain reduction, allowing you to compress the rest of the mix—like vocals or guitars—without the low end of the track causing unwanted "breathing" or rhythmic side effects.

While the Mastering Variable Mu is primarily designed for the precise needs of mastering, it can certainly be used for tracking. Its pristine signal path, high-headroom all-tube design, and musical compression are all benefits for recording individual instruments. However, it is a dual-channel unit with a stereo-only link, so if you are only tracking a single instrument, you will only be using one channel. Many engineers find the standard Variable Mu to be more versatile for a wider range of tracking and mixing applications due to its continuous controls and mono/stereo linking options.
