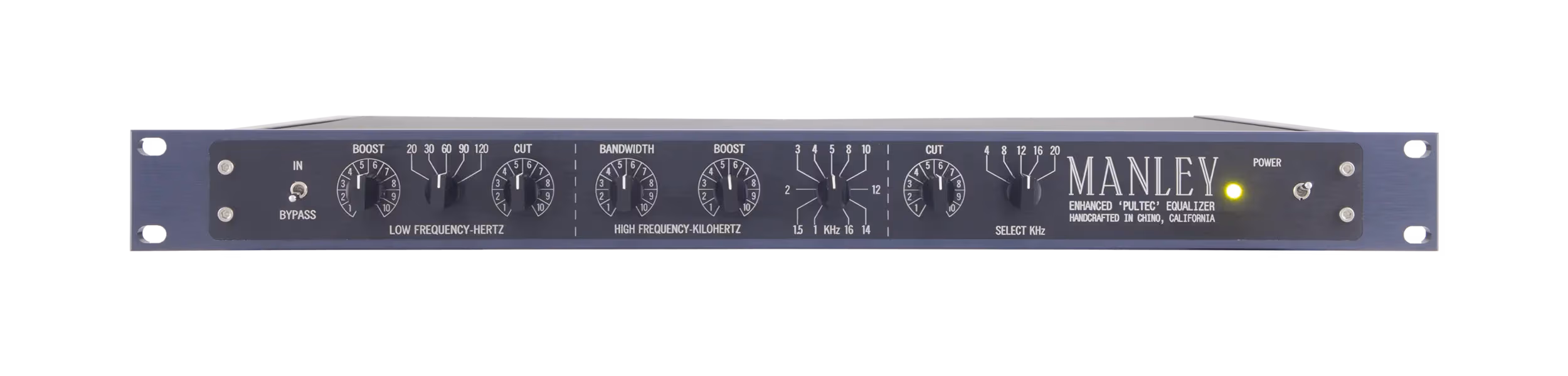

The Manley Enhanced Pultec is a modern and improved version of the antique Pultec design. While it preserves the legendary passive EQ circuit and musical sound of the original, it features several key enhancements. It uses modern, high-quality components for improved reliability and lower noise. It includes additional frequency bands not found in the original, and its all-tube make-up amplifier and superior power supply provide a robust, consistent signal. Unlike vintage units, which had three transformers in the signal path, the Manley unit has a transformerless option for a cleaner sound.

A passive EQ is a type of equalizer that uses passive components—such as resistors, capacitors, and inductors—to shape the tone. The passive circuit itself does not amplify the signal; it only cuts or reduces it at certain frequencies. The signal is then brought back up to a professional level by a dedicated gain amplifier. This design results in a highly musical and natural-sounding EQ with very little phase shift, which is a significant reason for the "Pultec magic" on audio.

The Boost and Cut controls on the Pultec EQ can be used together to create a unique and highly musical curve. By boosting a frequency and then simultaneously cutting the same frequency (or a nearby one), you create a steep dip followed by a smooth boost. This results in a "shelf" with a gentle slope and a resonant peak, which is a key part of the Pultec sound. It allows you to add body and presence to a sound without making it sound unnatural or boxy.

Manley's "Enhanced" design provides additional frequency options not found in the original Pultec. For the low-frequency section, Manley added a 20Hz boost. For the high-frequency section, they added a 25kHz shelf. These extra bands provide more versatility and control, making the unit more adaptable to a wider variety of modern recording and mixing applications.

Yes, the Manley Enhanced Pultec is an excellent tool for mastering. While it is a mono unit, a matched pair is a go-to choice for mastering engineers. Its wide, musical curves and ability to add "air" to the high end and "weight" to the low end with minimal phase shift make it a perfect tool for adding a final layer of polish to a mix. Its transparent sound and robust all-tube design are perfect for this critical application.

The Manley Enhanced Pultec's all-tube circuit utilizes a 12AX7WA vacuum tube for the input gain stage and a 6414 (or a 5965) tube for the output stage. These tubes are hand-selected, tested, and burned-in by Manley to ensure low noise, long life, and consistent sonic excellence. The use of these specific tubes is a key component of the EQ's rich, warm, and musical sonic character.
