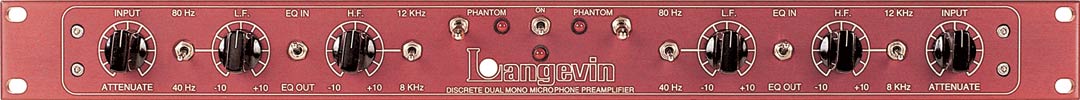

This dual-channel microphone preamplifier is our refined version of the historic Langevin AM-4 console channel. We developed our own discrete gain stage to provide for balanced outputs to bring the Langevin brand into the modern age while still retaining that desirable tone that discrete circuitry delivers. No IC's in this unit, please! We also added 1/4" DIRECT INPUTS addressable from the rear panel. The continuously variable plus and minus 10dB shelf EQ's switched turnover points have been chosen carefully at 40 or 80Hz (L.F.) and 8 or 12KHz (H.F.). All EQ can be completely switched out or set to 'flat' positions. Up to 53dB of gain is available to accommodate a wide range of microphones and high-current 48 volt phantom powering is built in. Because the most single influential component in a mic pre has to be the input transformer, this unit features our precision MANLEY mic input transformers which are wound right here in our factory, for that natural sound with a touch of brawn good iron provides.

Also, check out the Langevin Dual Vocal Combo which is one of these buggers combined with a Langevin ELOP.






SPECIFICATIONS

  • Frequency Response0 dB 10 Hz to 20 KHz

  • <0.05% THD @ 1kHz S/N ratio: 103dB

  • EIN: -124dB

  • Gain: 38dB to 53dB (adjustable)

  • MIC Input Impedance: 2400 Ohm BALANCED TRANSFORMER COUPLED

  • DIRECT Input Impedance: 23 kOhm UNBALANCED 1/4"

  • Output Impedance: 11 Ohm XLR, 6 Ohm 1/4" all-discrete outputs

  • Maximum output: +31dBv

  • Power Consumption (120/240 VAC): 12 watts

  • Factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.

  • Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.

  • Mains Voltage Frequency: 50~ 60Hz

  • Dimensions: 19" X 1 3/4" X 10" (occupies 1u)

  • Shipping Weight: 9 lbs.

Specifications subject to change because they just might.




HISTORICAL NOTES

The earliest Langevin Dual Mono Mic Preamps were built at the VTL factory in 1992 and 1993. We had aquired the brand from the Mark IV Audio Group and for awhile the asked us to put "In co-operation with Mark IV Audio, Inc." on the faceplates. We obliged until we received a letter from them wondering why we had their name on our faceplates... it seemed as they had forgotten that they had told us to put that there! We were all too happy to finally remove that disclaimer.

Also note the earlier Langevin Dual Mono Mic Preamps had one shared Phantom Power switch per channel. The whole audio circuit was different, actually.




LANGEVIN FAQs

We frequently get asked a number of questions regarding Langevin, including the proper pronunciation of the name. (the 'g' is soft like in 'gelatin' or 'orange').

Langevin was one of the original pro audio manufacturers dating back to WWII. In that era there were far fewer audio manufacturers and Langevin gear was very popular and especially respected in the broadcast industry. There were very few recording studios then and most of them relied on Langevin, Altec, Fairchild, and other great brands as well as home-made gear. Early Langevin equipment was vacuum tube based and later became mostly discrete transistor based. Today, you can often find vintage Langevin pieces still in use after all this time.

Are these the exact same circuits as the vintage pieces?

The mic preamplifier and EQ borrow some ideas from the old circuits but are not identical at all. We designed new gain blocks to deal with the balanced/unbalanced saga better than they used to in the olden days. And of course, we use new parts! Transistors, pots and most components have become significantly improved over the last 30 years. The limiter is a blend of the old discrete style of Langevin discrete and the also vintage 'LA' series of Levelling Amplifiers. Manley developed a similar opto-based limiter and has used it in the Manley ELOP® Limiter, Langevin ELOP® Limiter, Langevin Dual Vocal Combo, and the VOXBOX® limiter / de-esser section.

What's the difference between a Manley Pultec or ELOP® Limiter and a Langevin one?

The Manley units are all-tube while the Langevin units have all-discrete make up gain amplifiers. The EQ or limiting and metering sections are all the same Manley-to-Langevin. Your choice becomes between the sound of discrete transistor cicuitry in the Langevin gear or vacuum tubes with and without transformers in the Manley gear. Different flavours, but all build side-by-side with all high quality parts and reliable construction techniques at the Manley Labs factory.

Do we support any of the vintage Langevin products?

Sorry, no. We just bought the name and rights to use any of the old circuits. We didn't build the old stuff and never have had parts or real documentation. The usual experts on vintage gear and restoration are your best bet.
